Highlights

Category

Folding, Fat Tire

Class

Can be configured to a Class 1, 2, or 3 E-Bike.

Frame Type

Low-step

Seating

Relaxed

Perfect For

Paved / Light Trails / Recreation

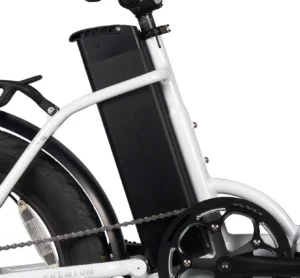

THE BATTERY.

The heart of the Premium 3 is the integrated, long-range 48V / 15.6Ah / 749Wh Samsung battery that powers rides up to 50 miles, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

15Ah

50 miles (80 Kilometers) Max Range

7.5 Hours Charge Time

CONVENIENT FOLDING MECHANISM

Aluminum frame folds for easy travel and storage

The folding mechanism on the Premium 3 frame allows the user to carry the bike easily inside vehicles or store it in space-limited residences or offices.

Component Overview

Electronic Details

Motor Brand

Bafang

Motor Type

Geared Rear Hub with Intelligent Torque & Cadence Sensing

Motor Nominal Output

500 Watts

Motor Peak Output

750 Watts

Battery Voltage

48V

Battery Ah

15Ah

Battery Wh

720Wh

Battery Chemistry

Li-NMC, UL2271 & UL2849 Certified

Battery Charge Time (from empty)

7.5 Hours

Minimum Range

30 Miles (48 Kilometers)

Maximum Range

50 miles (80 Kilometers)

Display Type

Magnum Branded VeloFox, 3.5″ Diagonal, Fixed, Monochrome, Backlit LCD

Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer,

Range, Trip Time

Drive Mode

Dual-Mode Pedal Assist (Torque & Cadence Sensing), Thumb Throttle (Advanced Torque Sensor + 12 Magnet Cadence Sensor)

Top Speed

Up to 25 mph (40 km) with pedal assist, up to 20 mph with throttle only

Lights

Integrated Front Light w/Horn (20 Lux), Integrated Rear Light (20 Lux)

Mechanical Details

Frame material

Aluminum Alloy

Frame Type

Fork Details

Coil Spring Suspension w/Lockout

Gearing details

Shimano 7 Speed (14-28t Freewheel)

Shifter Details

Shimano 7 Speed

Crank

Alloy, 52t, 170mm

Pedals

Folding Platform

Stem

Folding Telescopic

Brakes

Hydraulic Disc Brakes

Grips

Ergonomic Faux Leather

Saddle

Padded Saddle w/Suspension

Tire Brand

20 x 3.0

Wheel size

20″

Fenders

Front and Rear Included

Chain

KMC

Measurements

Seat Tube

15″ (42 cm)

Reach

17″ (47.5 cm)

Stand Over Height

15.75″ (40 cm)

Virtual Top Tube Length

24.5″ (62 cm)

Min Saddle Height

21.75″ (55 cm)

Max Saddle Height

31.5″ (80 cm)

Width

25.5″ (65 cm)

Wheelbase

47″ (119 cm)

Length

68″ (173 cm)

Total Weight

62.25 lbs. (28.25 kg)

Battery Weight

11 lbs. (5 kg)

Recommended Minimum Rider Height

5’0″

Max Load Capacity

330 lbs. (150 kg)

What’s Included

Kickstand

Left-side Chainstay Mount; Adjustable

Bell

Electric horn included

Charger

Included

Front Rack

N/A

Rear Rack

Included

Fenders

Front and Rear Included

Accessory Mounts

Top tube mounts for a water bottle cage (Cage/bottle not included)
