Highlights

Category

Touring

Class

Can be configured to a Class 1, 2, or 3 E-Bike.

Frame Type

Low-step

Seating

Relaxed

Perfect For

Paved / Light Trails / Recreation

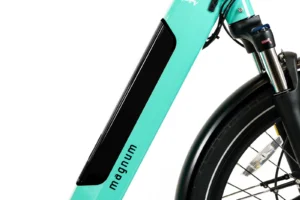

THE BATTERY.

The Cosmo 2.0’s fully integrated 15Ah battery lasts up to 50 miles per charge, powering a 500 Watt motor with torque sensor for the ultimate ride on paved roads and light trails.

15Ah

50 miles (80 Kilometers) Max Range

6.5 Hours Charge Time

STYLE MEETS COMFORT

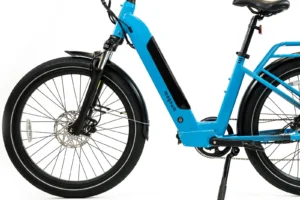

Low-step geometry

Designed and built with the city and commuter cyclist in mind, the low-step frame design is a breeze to mount and dismount.

Electronic Details

Motor Brand

Vision

Motor Type

Hub-Drive; brushless; planetary geared

Motor Nominal Output

500 Watts

Motor Peak Output

750 Watts

Battery Voltage

48 Volts

Battery Ah

15Ah

Battery Wh

720Wh

Battery Chemistry

Li-NMC, UL2271 & UL2849 Certified

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

15 Miles (24 Kilometers)

Maximum Range

50 miles (80 Kilometers)

Display Type

Magnum Branded VeloFox, 8 x 7 cm Display Screen, Backlit Monochrome LCD

Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time, 24hr clock

Drive Mode

Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode

Top Speed

Up to 25 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated front and rear lights

Mechanical Details

Frame material

Aluminum Alloy

Frame Type

Low-step

Fork Details

SunTour XCM 32 suspension fork, 80mm travel with Lock-Out

Gearing details

Shimano 7 Speed 11-32T

Shifter Details

Shimano 7-Speed Twist Shifter

Crank

Aluminum Alloy 170mm

Pedals

Wide Platform with Reflectors

Stem

Adjustable

Brakes

Tektro Hydraulic

Grips

Black Faux Leather

Saddle

Velo Gel Comfort

Tire Brand

CST

Wheel size

26 x 2.35

Fenders

Front and rear included

Chain

KMC Z7

Measurements

Seat Tube

17.5″ (440 mm)

Reach

17″ (430mm)

Stand Over Height

15″ (380mm)

Virtual Top Tube Length

23.25″ (590 mm)

Min Saddle Height

27.75″ (705mm)

Max Saddle Height

37.75″ (960mm)

Width

25.25″ (640mm)

Wheelbase

45.25″ (1150mm)

Length

72.25″ (1835mm)

Total Weight

68 lbs (30 kg)

Battery Weight

9.3 lbs (4.2 kg)

Recommended Minimum Rider Height

4′ 10”

Max Load Capacity

330 lbs (150kg)

What’s Included

Kickstand

Includes Center-Mounted Single Side Adjustable Length Kickstand

Bell

Built-in, Integrated in headlight

Charger

Includes 54.6V 2A Charger

Front Rack

Magnum Front Rack Compatible (Not Included)

Rear Rack

Integrated Rear Rack

Fenders

Includes Front and Rear Fenders

Accessory Mounts

Includes Built-In Head Tube and Seat Tube Accessory Mounts
